PLC splitter/FBT Splitter

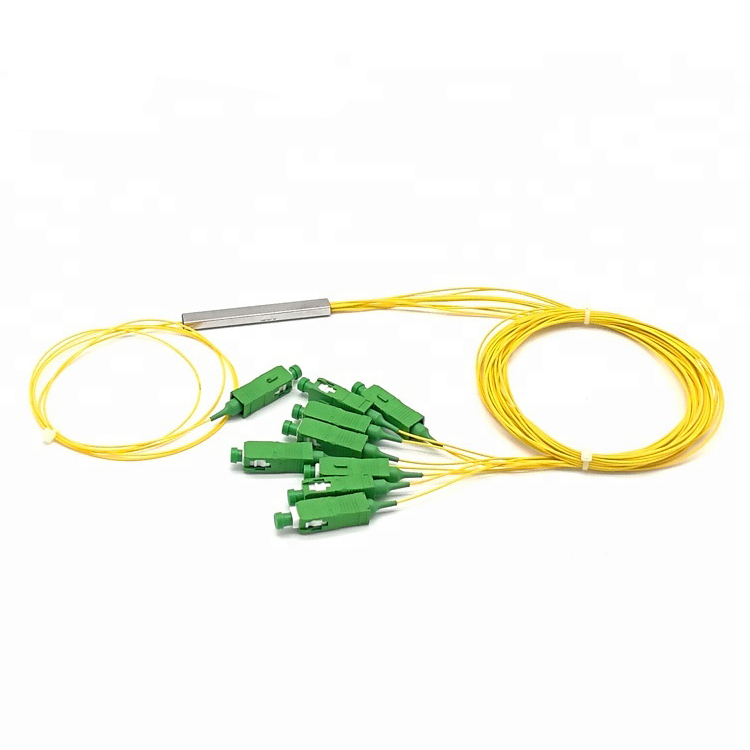

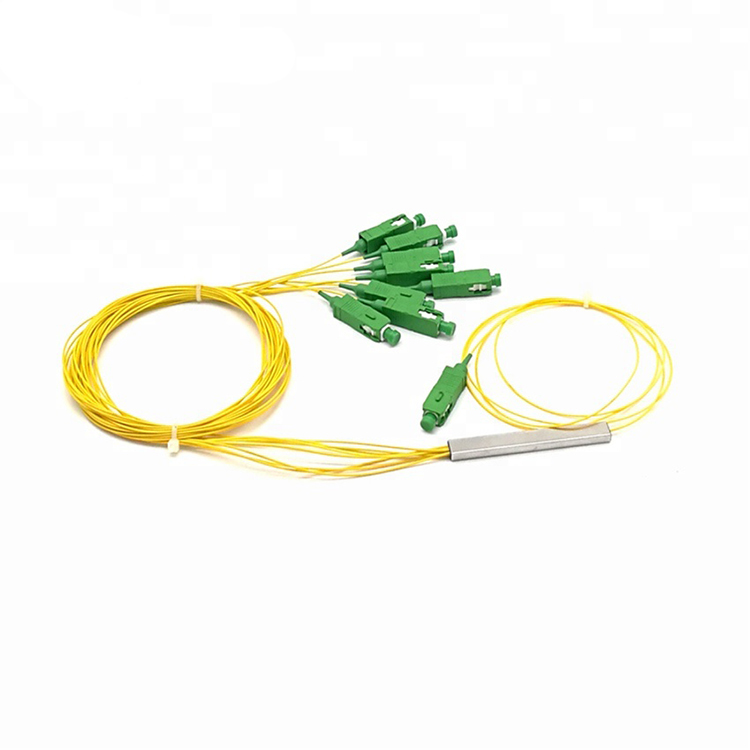

Fiber PLC mini splitter 0.9mm splitter

Product description: Product Highlights Split Input Signal Evenly into 8 Output Ports ≤10.5dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss Fully Passive Optical Branching Device Compact Housing Fits
INQUIRY

Products Description

Features:
* Low Insertion Loss.
* Low PDL.
* High Return Loss.
* Uniform Power Splitting.
* Wide Operating Wavelength: 1260-1650nm
* Wide Operating Temperature: -40°C - 85°C

Application:
* Low Insertion Loss.
* Fiber to home(FTTH)
* Passive Optical Networks(PON)
* Local Areal Networks(LAN)
* Fiber communication systems

Product Paramenters

operating wavelength(nm)		1260-1650
Fiber type		G657A 0r customized by customers
Splitting ratio		1*2	1*4	1*8	1*16	1*32
Insertion loss(dB)(p/s)level	maximum	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9
Loss Uniformity (dB)	maximum	0.6	0.6	0.8	1.2	1.5
Polarization Loss(dB)	maximum	0.2	0.2	0.3	0.3	0.4
Return Loss(dB)	maximum	55	55	55	55	55
Directivity(dB)	maximum	55	55	55	55	55
Wavelength Dependent Loss(dB)	maximum	0.5	0.5	0.5	0.8	0.8
Temperature Stability(-40-85℃)(B)	maximum	0.5	0.5	0.5	0.8	0.8

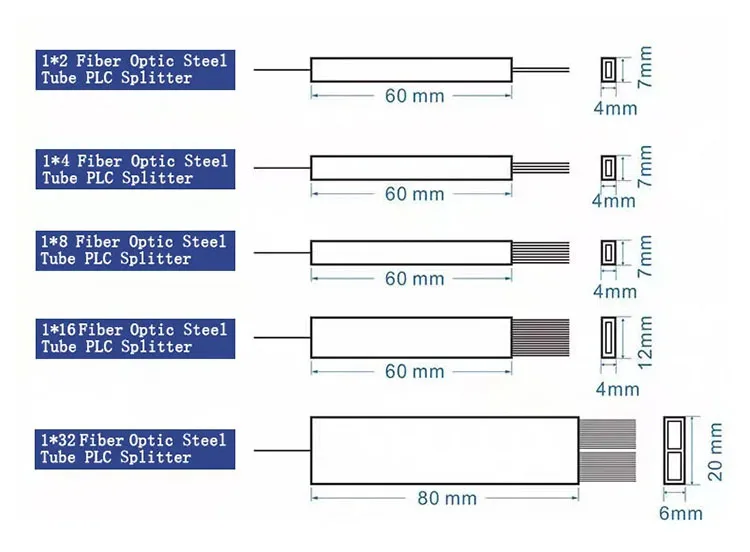

Product size(mm)(LWH)		6074	6074	6074	60124	80206
notes : 1.Insertion loss does not include adapter 2.Add an additional 0.2dB loss per connector
