Fiber Fast Connector

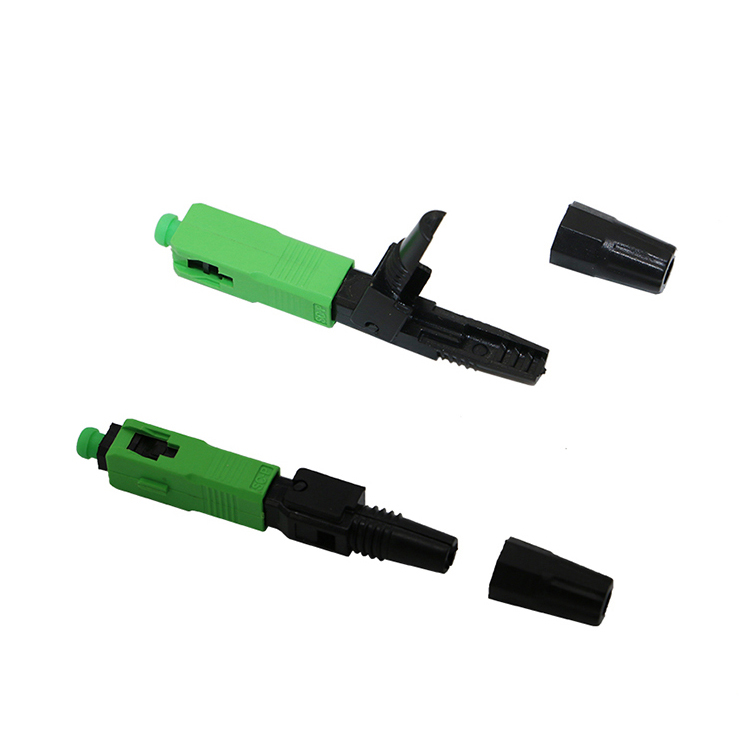

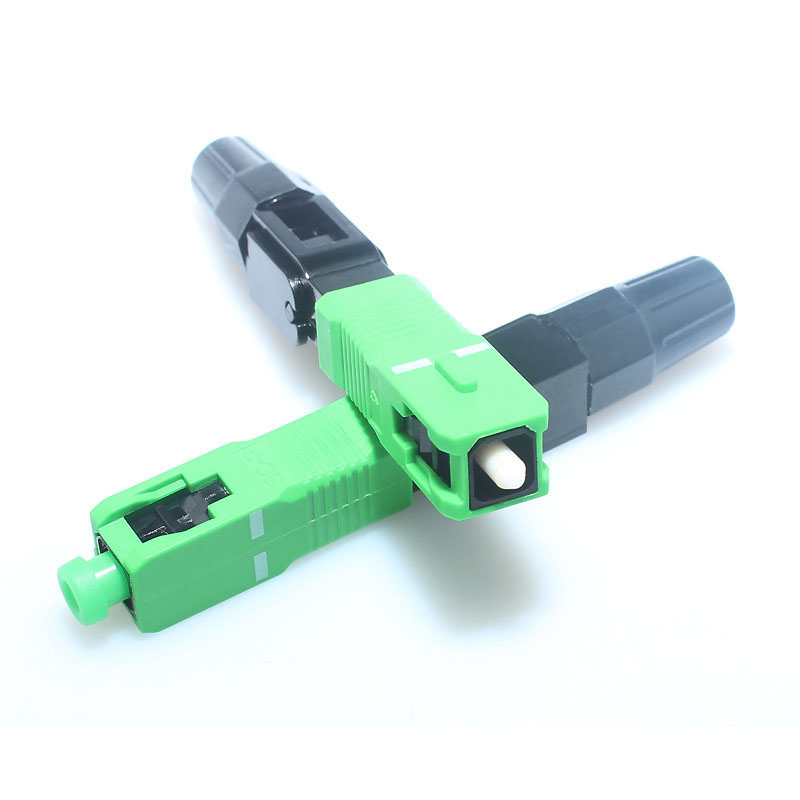

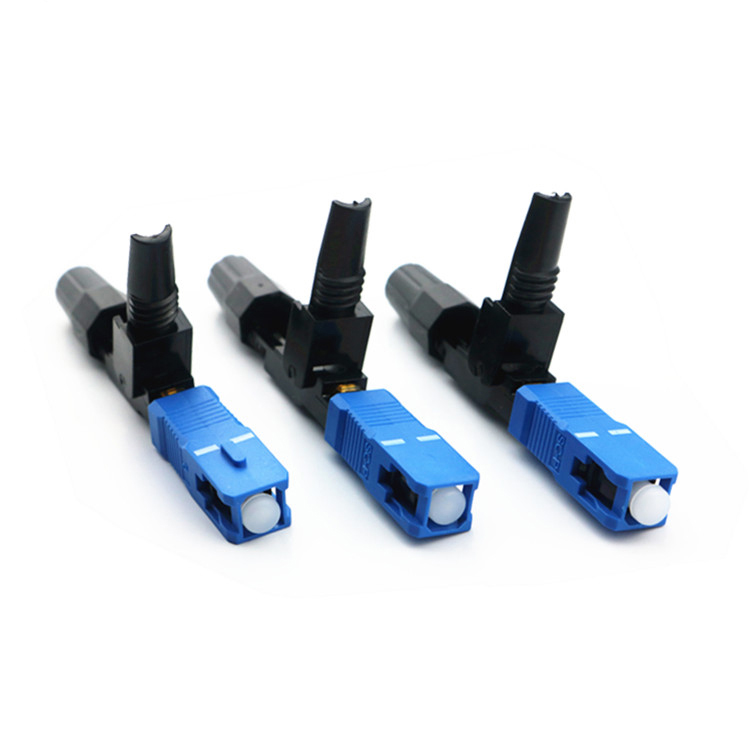

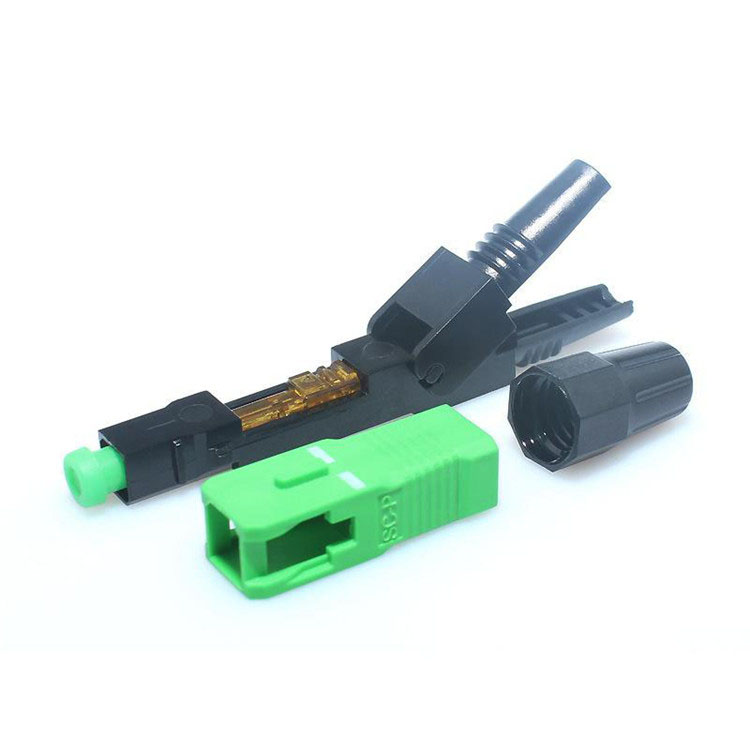

Product description: Fiber optic SC/APC and SC/UPC fast connector The fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly.It can provide open flow and precast
INQUIRY

Product Description

Feature

1.quickly assembly connetor

2.high return loss,low insert

3.cost effective portable

4.install quickly

5.reliable and superior optical performance

Application:

1.Patch panels

2.Distribution frames

3.Maintenance or emergency restoration of fiber networks

4.FTTH Outlets

5.Connection at the desk for LAN environments

Specification

Applicable for	3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Optical fiber diameter	φ125um (657A&657B)
Tight buffer diameter	φ250um
Fiber mode	Single mode
Operation time	About 10s (exclude fiber cut)
Insert loss	≤0.3dB (1310nm & 1550nm)
Return loss	≥45dB
Fastening strength of naked fiber	≥ 5N
Tight clamping force cladding	≥ 8N
Tensile strength	≥ 50N
Using temperature	-45°C~+80°C
