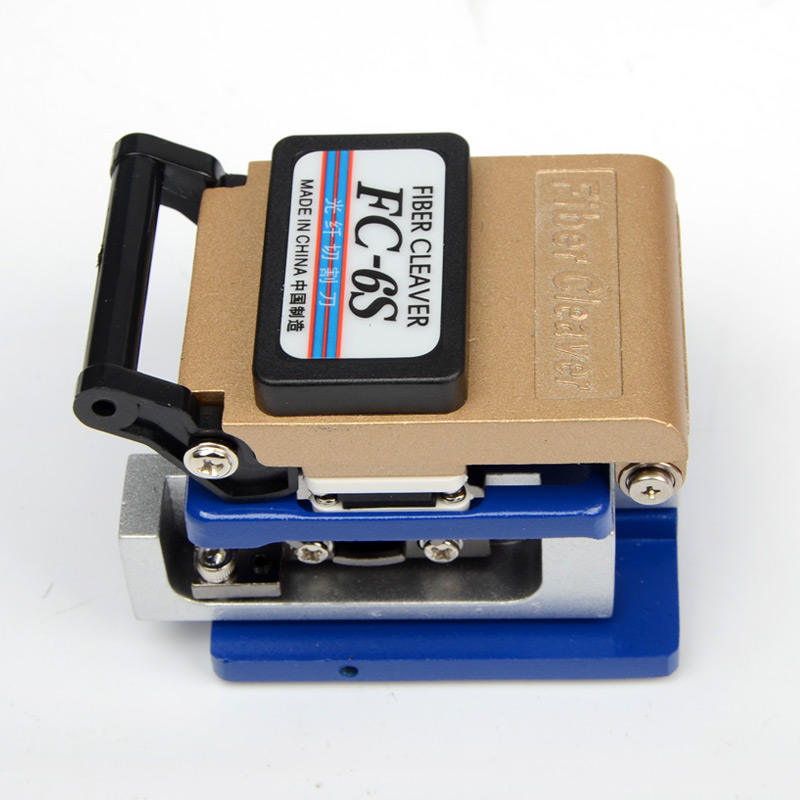

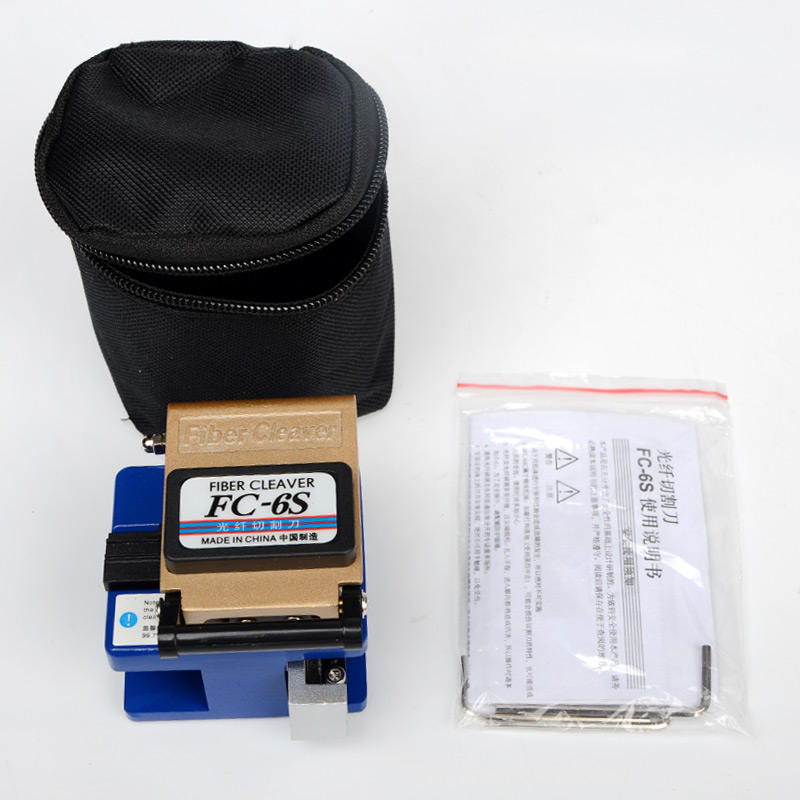

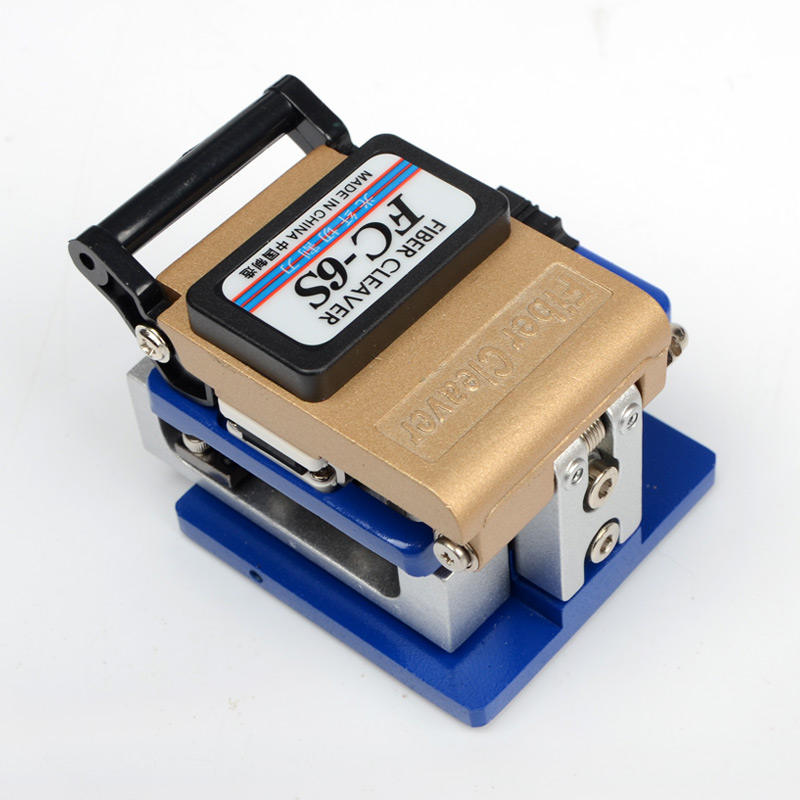

Fiber Optic Cutter fiber cleaver fc-6s

Product description: Fiber optic cutters are used to cut optical fibers as thin as hair. Only after the cut optical fibers are observed to be flat after being magnified hundreds of times, can they be discharged and splice
INQUIRY

Fiber Type	single fiber
Fiber Diameter	250um/900um/Ribbon Fiber
Bare Fiber Diameter	125um
Cleave Angle Capability	typically <0.5˚ (single core)
Cleave Length	5~20mm
Blade Lifetime	48,000 times fiber cleaves (3,000 times16 positions3 blade heights)
Dimension	91W57D52H (mm) (without fiber collector)

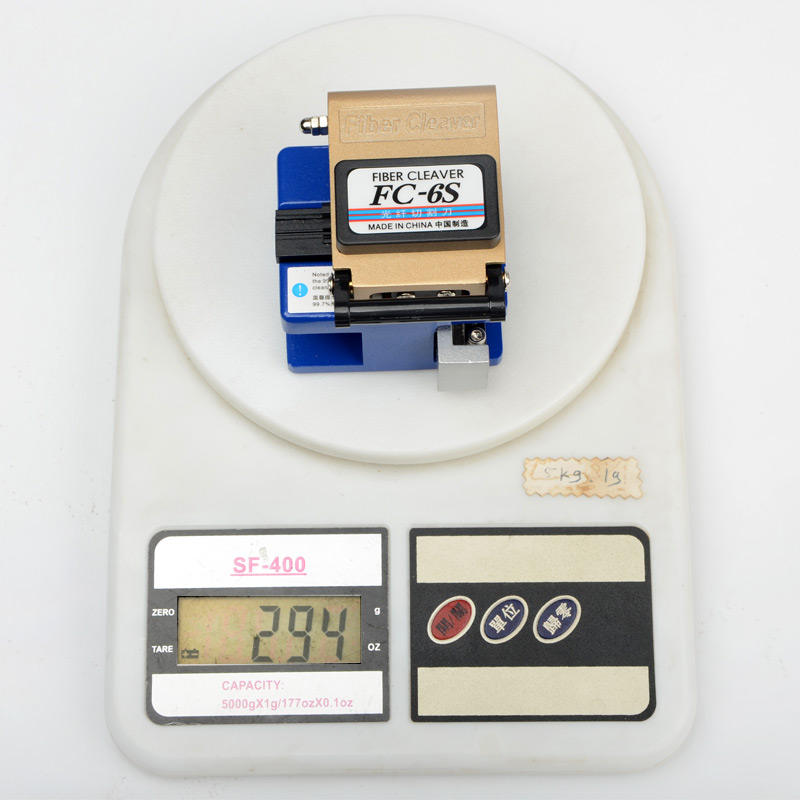

Weight	290g

Description

The Fibre tool FC-6S high precision cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving

Features

· - Used for Single Fiber Cleaving with Fiber Scrap Collection

· - Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency

· - Prevents Double Scoring of the Fibers

· - Has Superior Blade Height and Rotational Adjustment

· - Precision Blade features 24 blade positions with 2,000 cleavers per position

· - Can Be Operated With Minimal Steps
