Optical fiber tools

Fiber Optic One-step Cleaver

Product description: The disposable optical fiber cleaver is a precision optical fiber cutting tool for secondary finishing cutting. It completes the cutting of optical fibers in one operation and can achieve positioning
INQUIRY

Product Description

Features

1.Please read the instructions carefully before use;
2.Optical fiber and debris of the fiber are very fine, sharp at the tip, please adopt a special container for fiber debris collection to prevent fiber debris from pricking the skin or entering into the eyes.
3.Do not disassemble the cleaver, if repair is required, please contact the after-sales person of the manufacturer.

Specification

Applicable fiber	Single-core silica optical fiber

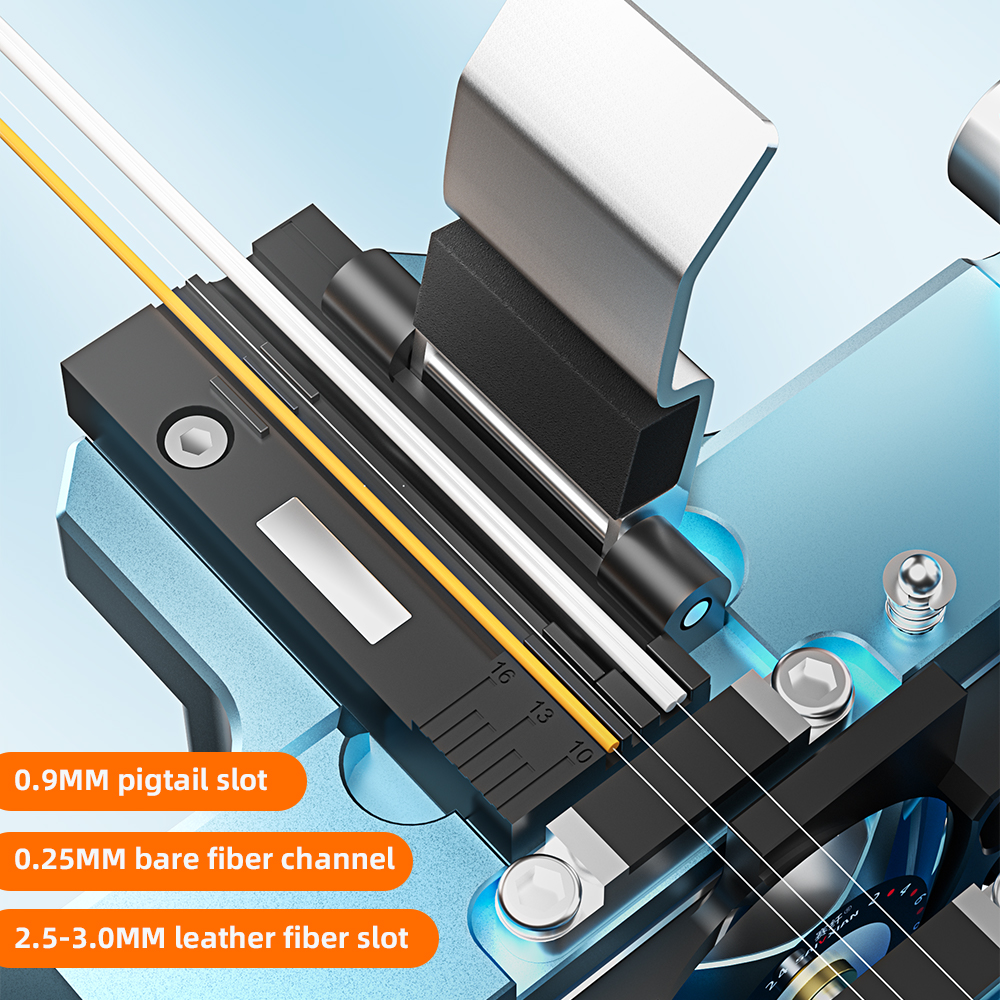

Applicable fiber coating-layer diameter	φ0.25, φ0.9, φ2.0, φ3.0
Applicable fiber diameter	125μm
Cleaved fiber length	5~16mm(φ0.25), 10~16mm(φ0.9)
Dimensions	72.1mm(W)×89.2mm(D) ×48.5mm(H)
Weight	175g
Cleaving angle	≤0.5°
Blade life	48000times
