Optical fiber tools

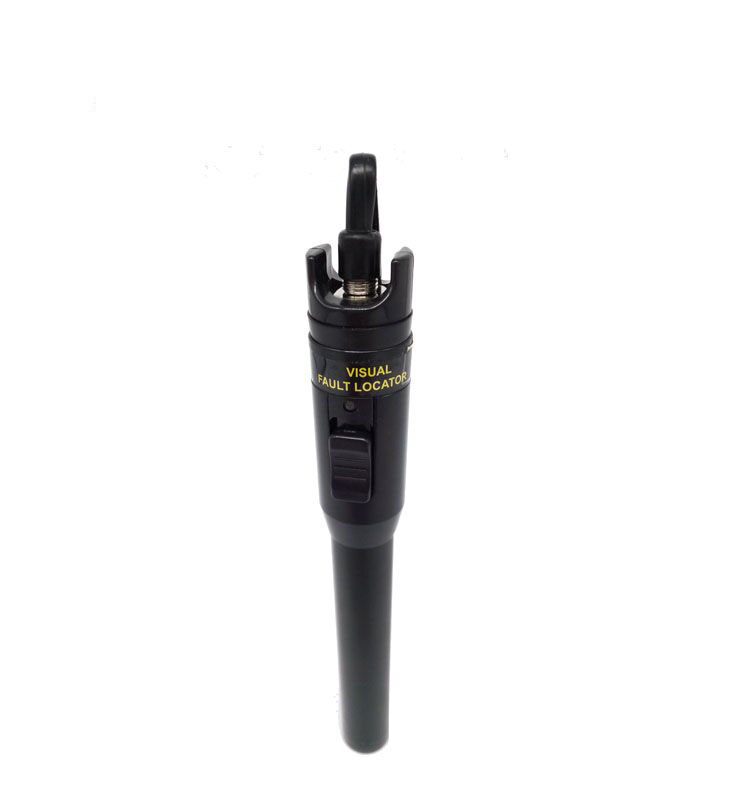

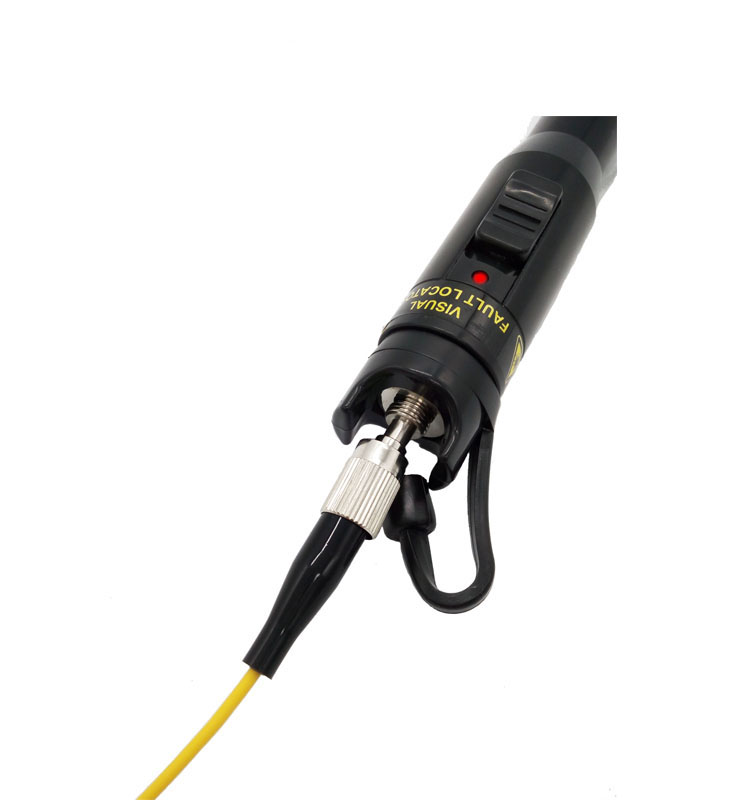

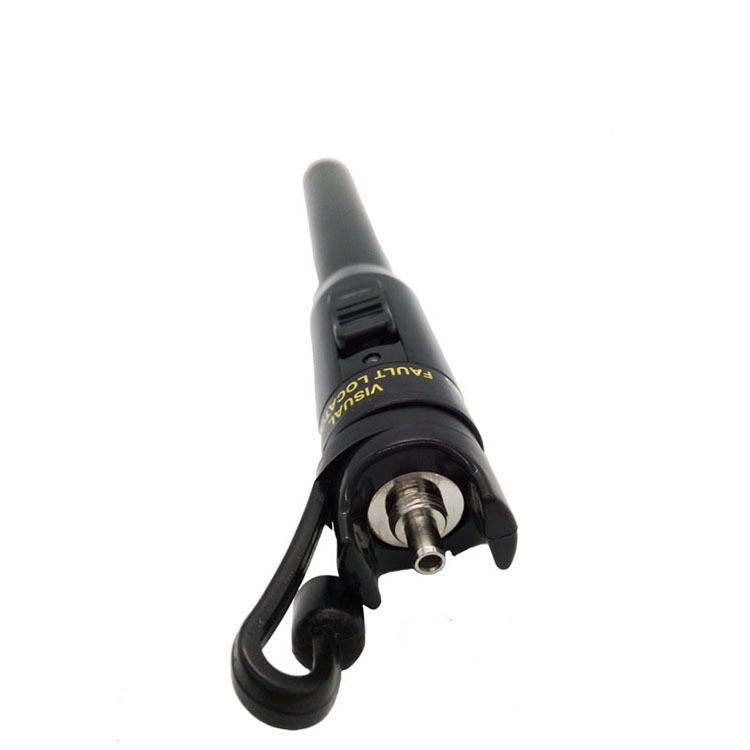

Fiber Visual Fault Locator

Product description: A Fiber VFL (Visual Fault Locator) is a handheld tool that identifies breaks, bends, or other faults in fiber optic cables by injecting a bright red laser light into the fiber. The red light leaks out
INQUIRY

A Fiber VFL (Visual Fault Locator) is a handheld tool that identifies breaks, bends, or other faults in fiber optic cables by injecting a bright red laser light into the fiber. The red light leaks out at the location of the defect, making it visible to the technician, and can also be used to check continuity and verify the path of the fiber.

Key attributes

Model Number

FCST080503-30mw

Type

Visual Fault Locator

Brand Name

FCST

Place of Origin

Shanghai, China

Use

FTTH

Warranty Time

24months

Network

None

Central Wavelength

650nm±10nm (635nm can be required on request)

Output Power

Optional choice for 1mw, 10mw on actual needs

Distance Range

5/8/10/20/30km

Optical Connector

1.25mm & 2.5mm

Operating Model

Both CW and Pulse available

Pulse Frequency

2~3Hz

Power Supply

2 AA alkaline batteries

Operating Temperature

-10~+45 (℃)

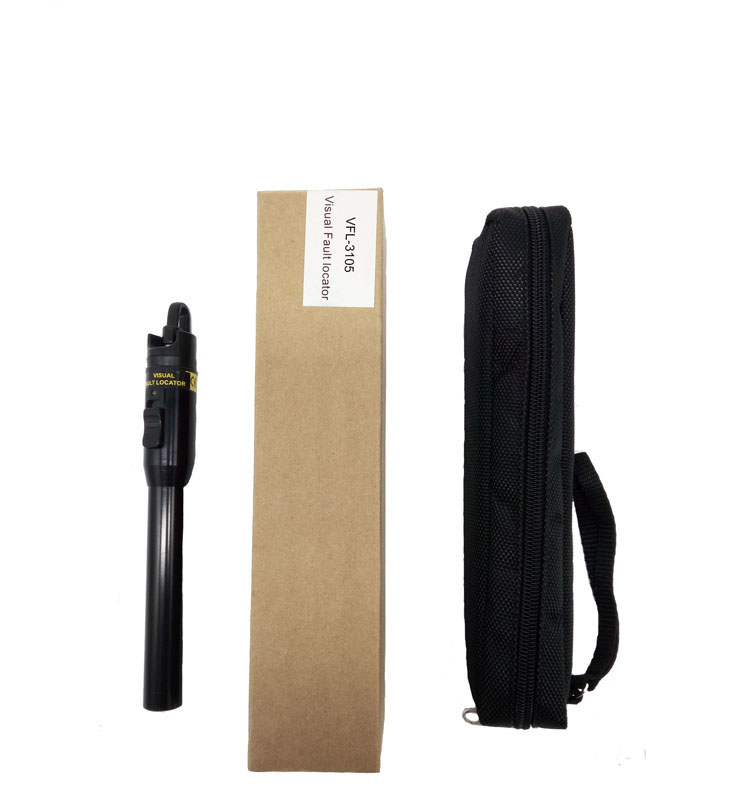

Packaging and delivery

Selling Units

Single item

Single package size

25X6X6 cm

Single gross weight

0.200 kg
